Description
The TA525PM adds hydraulic assistance to the expansion process, enabling smoother operation with minimal physical effort—especially useful in demanding or repetitive tasks.
Features:
- Applicability: Works with copper pipe sizes from ¼″ to 2 1/8″, compatible with standard and optional expander heads.
- Operation Mechanism: Employs a manual oil-hydraulic cylinder pump method, offering controlled, gradual expansion.
- Main Body Dimensions: Measures approximately 205 mm (L) × 45 mm (W) × 165 mm (H), and weighs around 960 g—compact yet substantial
Specifications:
| Feature | Specification |
|---|---|
| Supported Tube Sizes | ¼″ to 2 1/8″ |
| Operation Mechanism | Manual oil-hydraulic cylinder pump for smooth expansion |
| Body Size & Weight | 205 × 45 × 165 mm; ~960 g |
| Included Accessories | Expander heads (5 sizes), reamer, scraper, carrying case |
| Ideal Use Cases | Precision work or high-volume tasks requiring minimized effort |

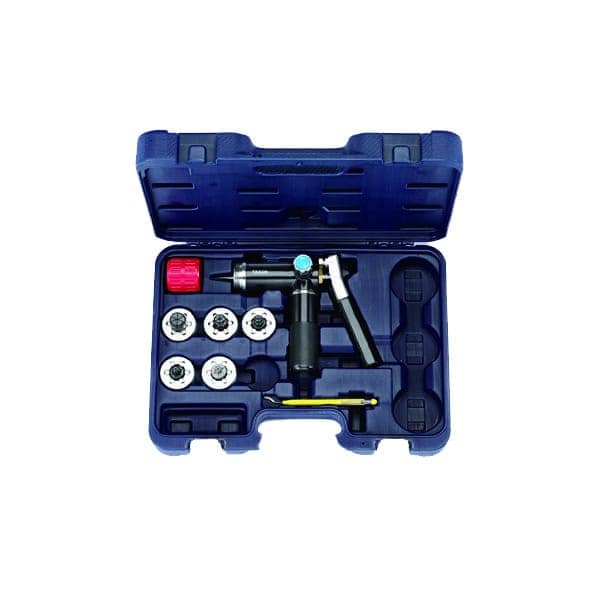

Includes:
Main hydraulic expander body. Expander heads: 3/8″, 1/2″, 5/8″, 3/4″, and 1″. Reamer and scraper tools for cleanup. Carrying case for portability and organization
