Description

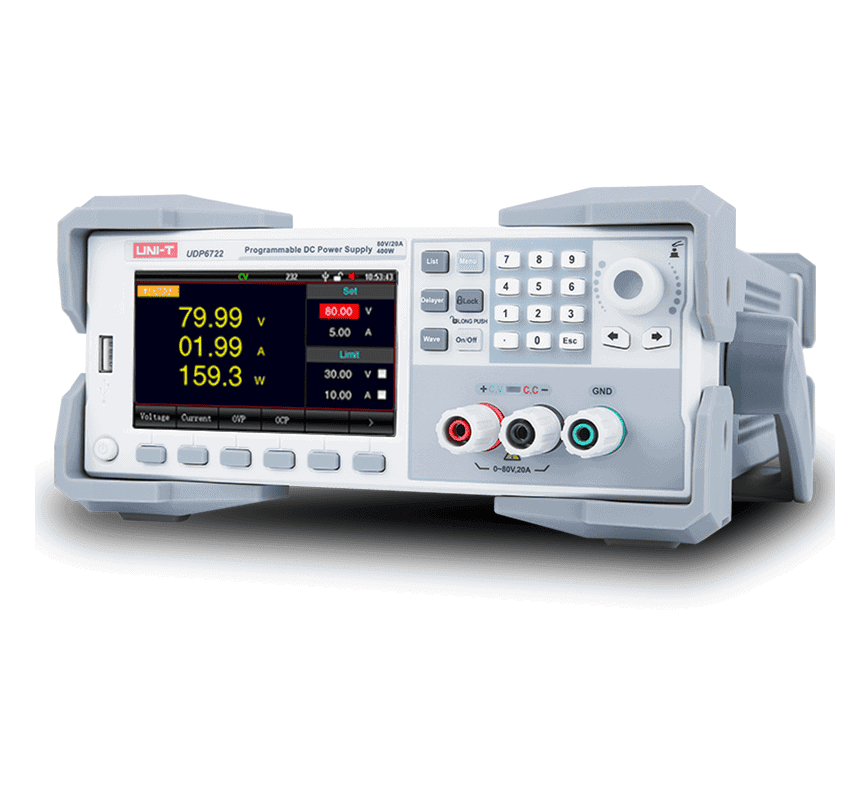

UDP6723 programmable DC power supply is a wide range switching power supply. This model has the characteristics of small size, light weight, and powerful functions; it adopts 4.3inch LCD screen, intuitive parameters and quick operation; it can be used in automatic test system, product development and debugging, laboratory, teaching experiment, mobile phone home appliance repair and other fields.
Features
- 80V/40A/850W wide range output
- 4.3-inch TFT-LCD display
- High precision and low ripple
- OVP, OCP, OTP
- Remote compensation function
- List, delay function, simulate a variety of loading conditions
- Voltage, current and power waveform display
- Fan intelligent adjustment

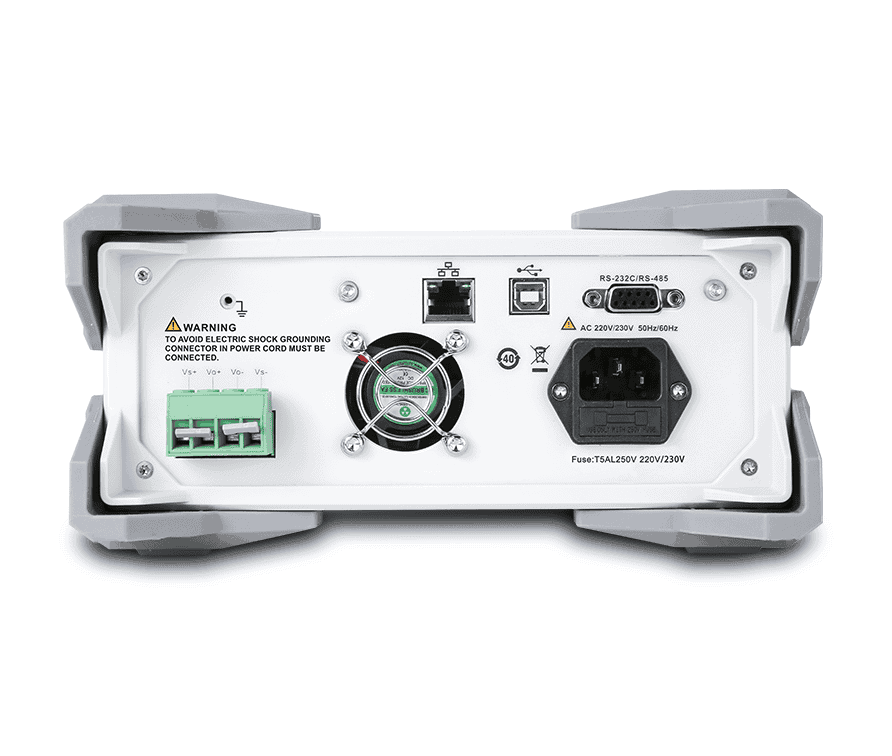

- Abundant interfaces: RS232, RS485, LAN, USB Host, USB Device
- Support SCPI/MODBUS protocol
- Supporting host computer software to realize remote operation and monitoring
| Specifications | |
| Model | UDP6723 |
| Channel | 1 |
| Output Rating Voltage | 0~80V；0~40A；850W |
| Load Regulation Voltage | <0.01%+10mV |
| Current <0.1%+10mA | |
| Line Regulation Voltage | <0.01%+10mV |
| Current <0.1%+10mA | |
| Read back Accuracy. Voltage | <0.03%+20mV |
| Current <0.1%+40mA | |
| Display Screen | 4.3-inch LCD |
| Dimension W*H*D | 214mm×88mm×393mm |
| Weight Net | 4.65 kg |
| Input AC: | 220V±10% |
| Remote compensation | 1V |
| Protocol | SCPI, MODBUS |
| Interface Remote | RS232, RS485, USB Host, USB Device, LAN |
| Warranty | 1 year |
