Description

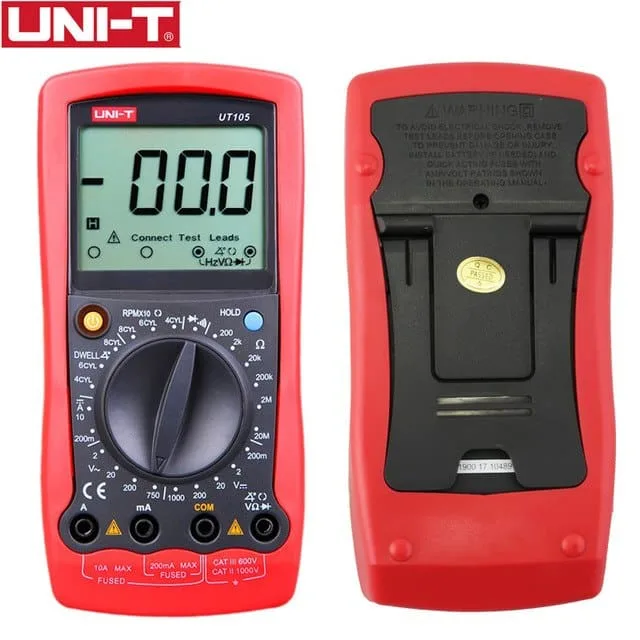

THE UT105 is specially designed for automotive diagnostic.
It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on a fuse, switch, solenoid, relay, charging system, fuel system, engine sensing plus many more special functions.
FEATURES:
- CAT III 600V / CAT II 1000V rating
- Fused 10A range
- Diode
- Continuity buzzer
- Low battery display
- Data Hold
- Full icon display
- Input Protection
- 12 Month Warranty.
INCLUDES:
1 x UT105, box, English manual, battery, test leads, holster and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT105 |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) |
| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+5) |
| DC current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+5) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
| Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product colour | Red and grey | |
| Product net weight | 351g (including holster) | |
| Product size | 179mm x 88mm x 39mm | |
| Standard accessories | Battery, test leads, holster | |
| Standard individual packing | Box, English manual | |
