Description

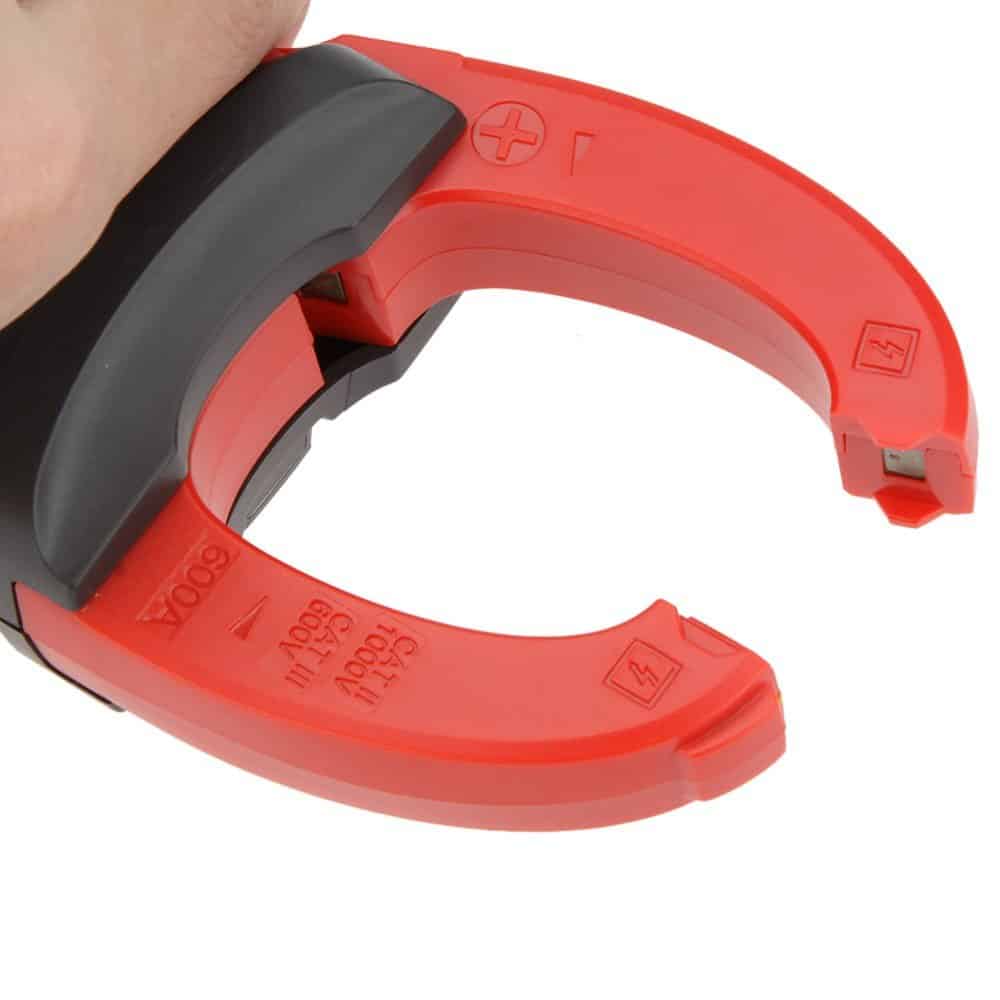

UNI-T’s UT216C is a 600A True RMS digital clamp meter with CAT III 600V CATII 1000V safety standards.
The function-packed UT216C is a 600A True RMS Digital Clamp Meter Auto Range w/Frequency Capacitance Temperature & NCV Test. UT216C digital clamp meters are designed for measuring high-frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems. Its double injection design gives users a more comfortable grip and enhanced durability.
FEATURES:
- CAT III 1000V / CAT IV 600V rating
- Display Count 6000
- Auto Range
- Jaw Capacity 30mm
- True RMS
- Diode Test
- NCV – non-contact AC voltage testing
- VCF
- Data hold
- Zero/Rel/max/min Mode
- Inrush Current
- Bar graf 61
- Display Backlight
- LED flashlight
- Auto Power Off
- Continuity Buzzer
- Low Battery Indication
- Input Protection
- Input Impedance DC 10MΩ+.
INCLUDES:
1 x UT216C, K-type Thermocouple Probe, Test Lead, English Manual, and 12-Month Warranty.
SPECIFICATIONS:
| Specifications | Range | UT216C |
| AC current (A) | 600A | ±(2.5%+5) |
| AC current frequency response | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
| Temperature | -40°C~1000°C | ±(2%+5) |
| -40°F~1832°F | ±(2%+10) | |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| V.F.C. | √ | |
| NCV | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| MAX/MIN | √ | |
| LCD backlight | √ | |
| Inrush current | √ | |
| Analog bar graph | 61 | |
| Flashlight | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | ≤3.6V | √ |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 38mm x 24mm | |
| Product colour | Red and grey | |
| Product net weight | 231.7g | |
| Product size | 220mm x 75mm x 40mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe | |
| Standard individual packing | Box, carrying bag, English manual | |
