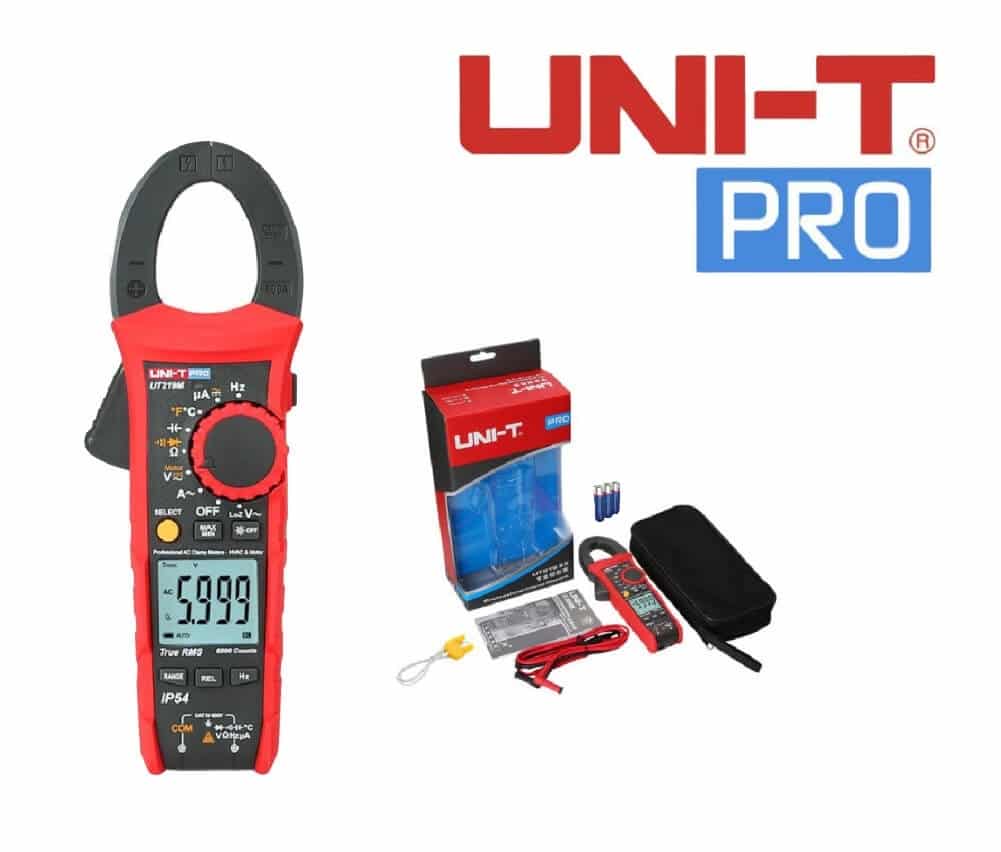

Uni-T UT219M Professional Clamp Meter Motor Test Loz

SKU: UT219M
Where To BuyRequest A Quote

True RMS CAT IV 600V 600A Professional Digital Clamp Meter With Motor Test.

SKU: UT219M Categories: ,

Description

UT219M is a True RMS Industrial Clamp Meter with CAT IV 600V rating.

It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

The waterproof rating is up to IP54; therefore, it can be used in environments with splashing water or dust.

FEATURES:

  • CAT III 1000V / CAT IV 600V rating
  • Display count 6000
  • Auto/Manual range
  • Jaw opening 33mm diameter
  • True RMS
  • 3-phase motor sequence test 600V
  • 3V Diode test
  • 3 times/s Measurement sampling rate
  • LCD Display
  • Auto power off/MAX/MIN
  • Low battery indication
  • Data hold (H)
  • Relative mode (REL)
  • ZERO mode
  • Function selection
  • Auto backlight + Flashlight
  • 2m drop proof
  • IP54 IP rating
  • Input impedance ≥10MΩ
  • LoZ input for ghost voltage measurement
  • Temperature and μA measurements.

INCLUDES:
UT219M,  Test Leads (1 m),  Temperature Probe (80 cm), Pouch, English manual, 3 x AAA Batteries, and 12-Month Warranty.

SPECIFICATIONS:

Specifications
Model UT219M
AC current (A) 60A/600A ±(1.8%+6)
AC voltage (V) 6V/60V/600V ±(1.0%+6)
LoZ ACV 600V ±(2.5%+6)
DC voltage (V) 6V/60V/600V ±(0.6%+3)
DC current (μA) 2000μA ±(0.9%+6)
AC current (μA) 2000μA ±(1.5%+6)
Resistance (Ω) 60Ω ±(1.5%+3)
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3)
Capacitance 6nF ±(4.0%+7)
60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4.0%+7)
Frequency 60Hz ~ 40MHz ±(0.1%+6)
Temperature (℃) -40~1000℃ ±(2.0%+5℃)
Temperature (℉) -40~1832℉ ±(2.0%+9℉)
Features
Display count 6000
Auto/Manual range
Jaw size 33mm
True RMS
AC current frequency response 40Hz~ 400Hz
AC voltage frequency response 40Hz~ 400Hz
3-phase motor test 600.0V
Diode test 3V
Measurement sampling rate times/s 3
LCD display (HTN) interface Single
Auto power off
Low battery indication
Data hold (H)
Relative mode (REL)
MAX/MIN
Function selection (SELECT)
Auto backlight
2m drop test
Safety rating IP54
Input impedance ≥10MΩ
General Characteristics
Power supply AAA 1.5V alkaline battery × 3
LCD size 35mm × 31mm
Device colour Red and grey
Device weight 310g
Device size 235mm × 82mm × 47mm
Standard accessories Test leads, batteries, K-type temperature probe, carrying bag
Standard individual packing Box, manual
