Description
UT593AU is a comprehensive digital multifunctional electrical safety test instrument.
Newly released in 2021, the UT593AU meets AS/NZS electrical standards.
UT593AU is a multifunction digital safety testing instrument, designed with a combination of large-scale integrated analog & digital circuits and microprocessor chip. It measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality and high accuracy. The instrument is widely used to measure RCD, insulation and earth connections on electrical equipment, and is an ideal tool for testing, inspection, and maintenance.
The overall instrument adopts new design as well as large-scale integrated analog circuits, digital circuits, and microcomputer chip combination. It is mainly used to complete measurement of parameters including (RCD) electric leakage protector, loop circuit/line impedance, grounding continuity test, test insulation resistance, DC voltage, AC voltage, and phase sequence judgment; it has more functions, higher accuracy, and stable performance as well as it is reliable and convenient for operation. It is applicable to measuring (RCD) electric leakage protector, measuring insulation of various electrical equipment and grounding continuity test.
FEATURES:
- 9999-count LCD display with analogue bar
- 250V~1000V DC insulation resistance test
- 200mA earth-resistance continuity test
- Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
- Lock test
- Phase Rotation
- RCD trip time test and the data storage with one key
- Full/Half wave and count downing (30s) test mode selectable
- 0°/180° phase angle option to detect the fastest trigger time
- Trip current test of RCD trip time X 1/2, X 1, X 5
- RCD trip trigger current test
- Phase sequence and missing test
- AC/DC voltage auto-check and test
- Connection check with status real-time display
- White backlight; auto power off

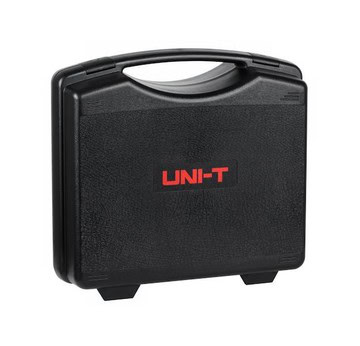

- Heavy Duty Cary Case.

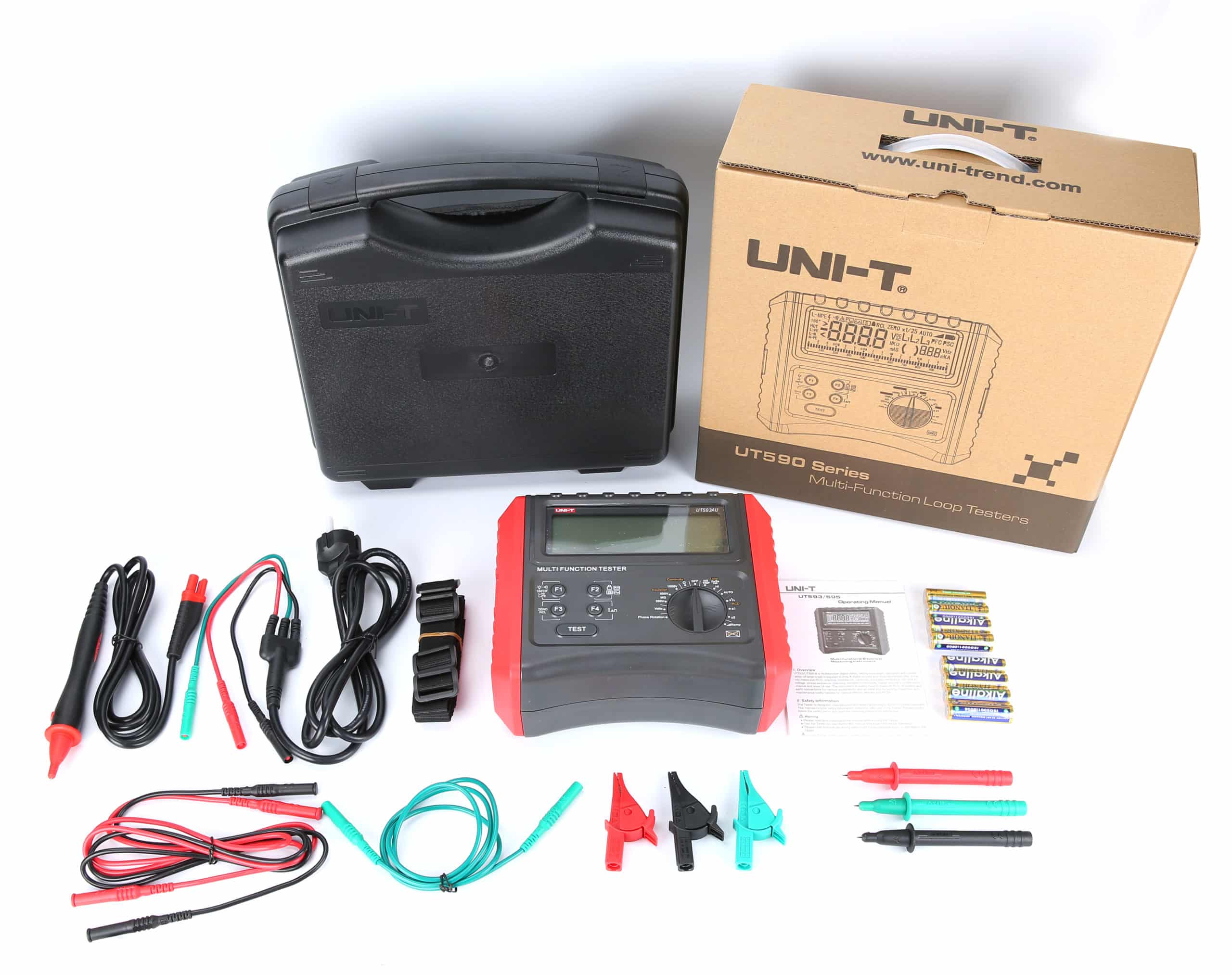

INCLUDES: Carry case, batteries, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead, 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | Best Accuracy | |
| Model | UT593AU | ||
| Insulation resistance (Ω) | Output voltage | 250V/500V/1000V | ±10% |
| 250V | 0.05MΩ～250MΩ | ±(5%+5) | |
| 500V | 0.05MΩ～500MΩ | ||
| 1000V | 0.05MΩ～1000MΩ | ||
| Short-circuit current | <2mA | ||
| Low-resistance continuity test | Range | 0.00Ω～199Ω | ±(2%+5) |
| Test current | 0.00～2Ω: >200mA | √ | |
| Line impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～440V (45Hz～65Hz) | √ | |
| Test current | 20A | √ | |
| PFC test | 0kA～26kA | √ | |
| Loop impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | |
| Test current | 20A | √ | |
| PFC test | 0kA～26kA | √ | |
| Non-trip loop impedance (Ω) | Range | 1.00Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | |
| Test current | 15mA | √ | |
| PFC test | 0kA～26kA | √ | |
| RCD test | Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ |
| Test current | 10mA/30mA/100mA/300mA/500mA | ±10% | |
| Trip time | ×1/2 *I△n Range: 0ms～2000ms | ±(5%+5) | |
| ×1 *I△n Range: 0ms～300ms | |||
| ×1 *I△n Range: 0ms～500ms (Select count down) | |||
| ×5 *I△n Range: 0ms～40ms | ±(5%+5) | ||
| Phase sequence test | Operating voltage (Frequency) | 100V～440V (45Hz～65Hz) | √ |
| Display | Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation | √ | |
| Ramp RCD test | Test current | 10mA/30mA/100mA/300mA/500mA | ±10% |
| AC voltage (V) | Range | 0V～440V | ±(5%+2) |
| Frequency response | 45Hz～60Hz | √ | |
| Resolution | 1V | √ | |
| Features | |||
| Display count | 9999 | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Data storage | √ | ||
| LCD backlight | √ | ||
| Auto half-wave test | √ | ||
| RCD count down test | 30s | √ | |
| RCD half-wave test | √ | ||
| Phase conversion (RCD) | 0° and 180° | √ | |
| General Characteristics | |||
| Power | 1.5V battery (5#) × 6 | ||
| LCD size | 125mm × 37mm | ||
| Product color | Red and grey | ||
| Product net weight | 1000g | ||
| Product size | 210mm × 175mm × 90 mm | ||
| Standard accessories | Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead | ||
| Standard individual packing | Box, manual, carry case | ||
