Description

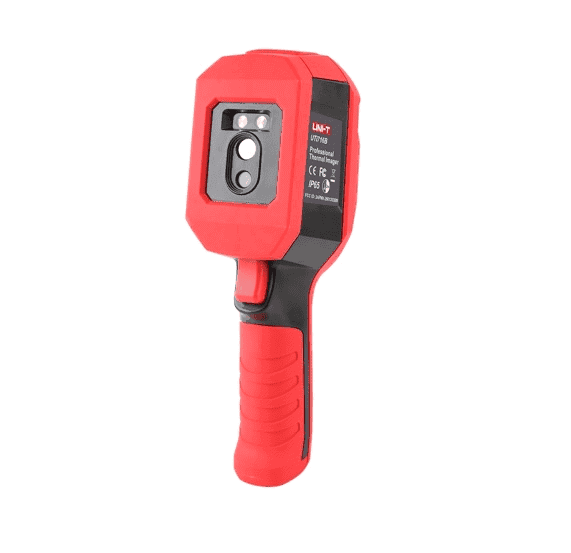

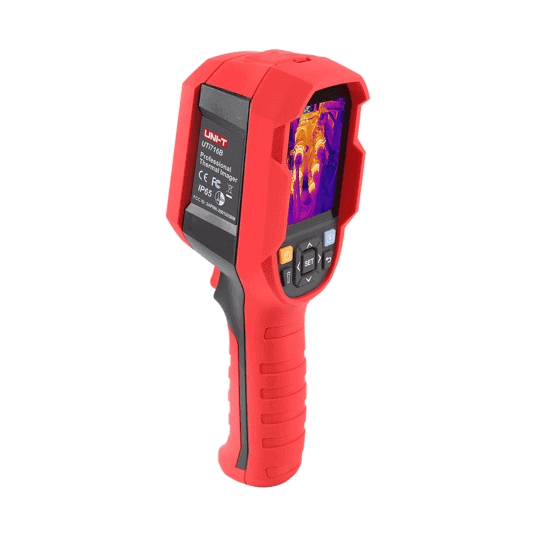

The UNI-T UTI716B is a robust and reliable thermal camera designed for tough working conditions while delivering significant performance. It features a 160×120 infrared detector, with an enhanced Super Resolution mode that upgrades images to 320×240 for improved clarity. A key characteristic is its heavy-duty construction, boasting an IP65 rating for dust and water protection and certification for 2-meter drop resistance. Offering a wide temperature measurement range of -20°C to 550°C, Wi-Fi connectivity for mobile app integration, and an extra-long 8-hour battery life, the UTI716B is an ideal and dependable tool for professionals in field maintenance, HVAC, and building diagnostics.
Features
- Clear IR Resolution: Equipped with a 160×120 pixel thermal detector to effectively identify thermal issues.
- Super Resolution Enhancement: Improves the captured image resolution to 320×240, providing greater detail for analysis.
- Extremely Durable: Built to last with a rugged design that is IP65-rated against dust and water ingress and is proven to withstand a 2-meter drop.
- Wide Temperature Range: Measures temperatures from -20°C up to 550°C, making it suitable for a broad array of professional applications.
- Wi-Fi Connectivity: Connects to mobile devices via Wi-Fi, allowing for live image streaming, data transfer, and further analysis on the companion app.
- Extended Battery Life: A high-capacity 5000mAh battery provides 8 hours or more of continuous operation, perfect for long workdays in the field.
- Integrated Onboard Tools: Features a 2MP visual camera, T-Mix image fusion for enhanced detail, video recording, and a large 32GB internal memory.
| Technical Data | |
| Display | 2.8” TFT (320×240) |
| IR resolution(Pixels) | 160×120 |
| Super resolution(Pixels) | √ (320×240) |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤50mK |
| Focus | Focus Free |
| Field of view(FOV) | 40°(H) × 30°(V) |
| Spatial resolution(IFOV) | 4.62mrad |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
