Description

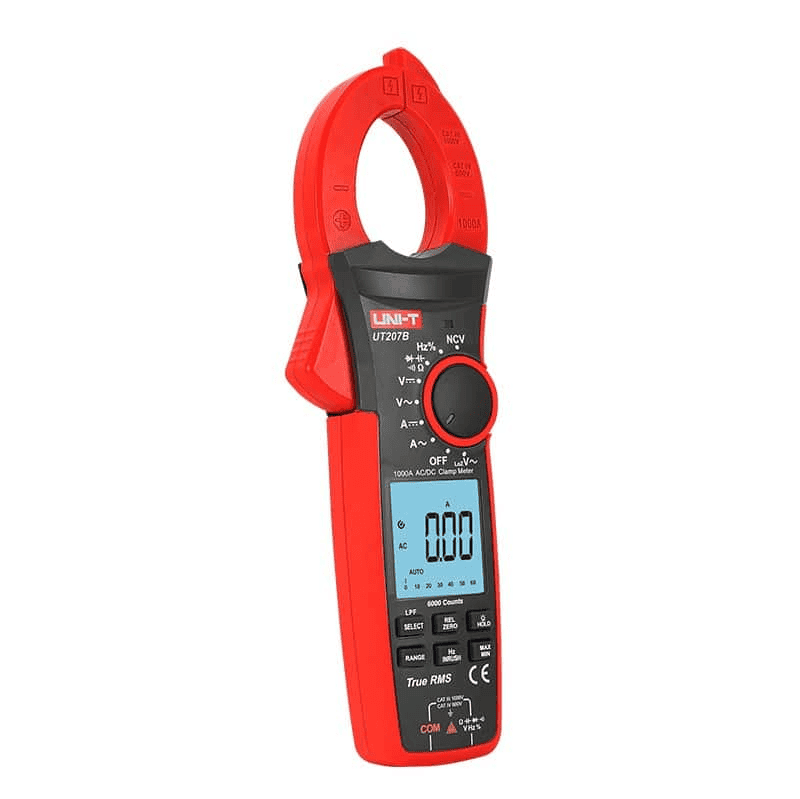

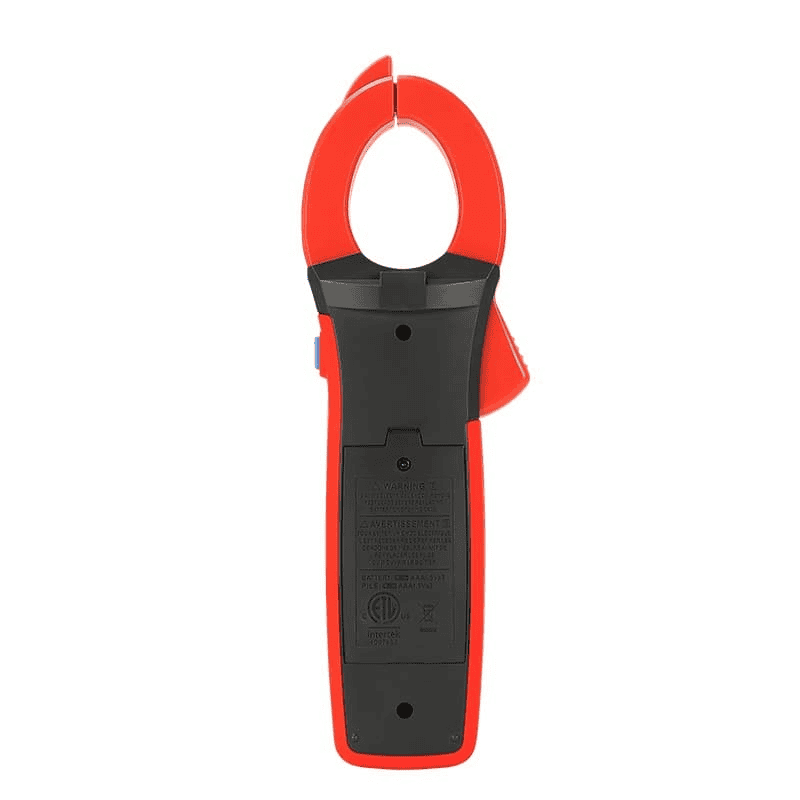

The UNI-T UT207B is a True-RMS current clamp from the UT200 series with an integrated multimeter that can measure AC current/voltage and DC current/voltage up to 1000 A/V. The meter has a 6000-count display with backlight, making it easy to read the measurements and a flashlight for darker spaces. In addition, it is possible to measure resistance, capacitance, frequency, using the supplied test wires and thermocouple. The NCV function allows wires with voltage to be detected quickly, before they can cause any damage. The UT207B features Autorange, which automatically selects the correct measurement range. It is also possible to set the desired measurement range manually. Furthermore inrush current, LPF and LoZ are also available.
| Specifications | |
| Display resolution | 6000 counts |
| AC voltage range | Up to 1000 V |
| DC voltage range | Up to 1000 V |
| AC current range | Up to 1000 A |
| DC current range | Up to 1000 A |
| Resistance range | Up to 60.00 MΩ |
| Capacitance range | Up to 60.00 mF |
| Low voltage frequency | 10 Hz – 1 MHz |
| Jaw opening | 42 mm |
| Other functions | Diode, Continuity, Min/Max record, Peak/Data hold, ZERO mode, auto power off, LoZ, LPF, NCV, inrush current |
| Power supply | 1.5 V battery x 3 |
| True-RMS | Yes |
| Data logging | Yes |
| Display | 2.5″ LCD |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420 g |
