Description

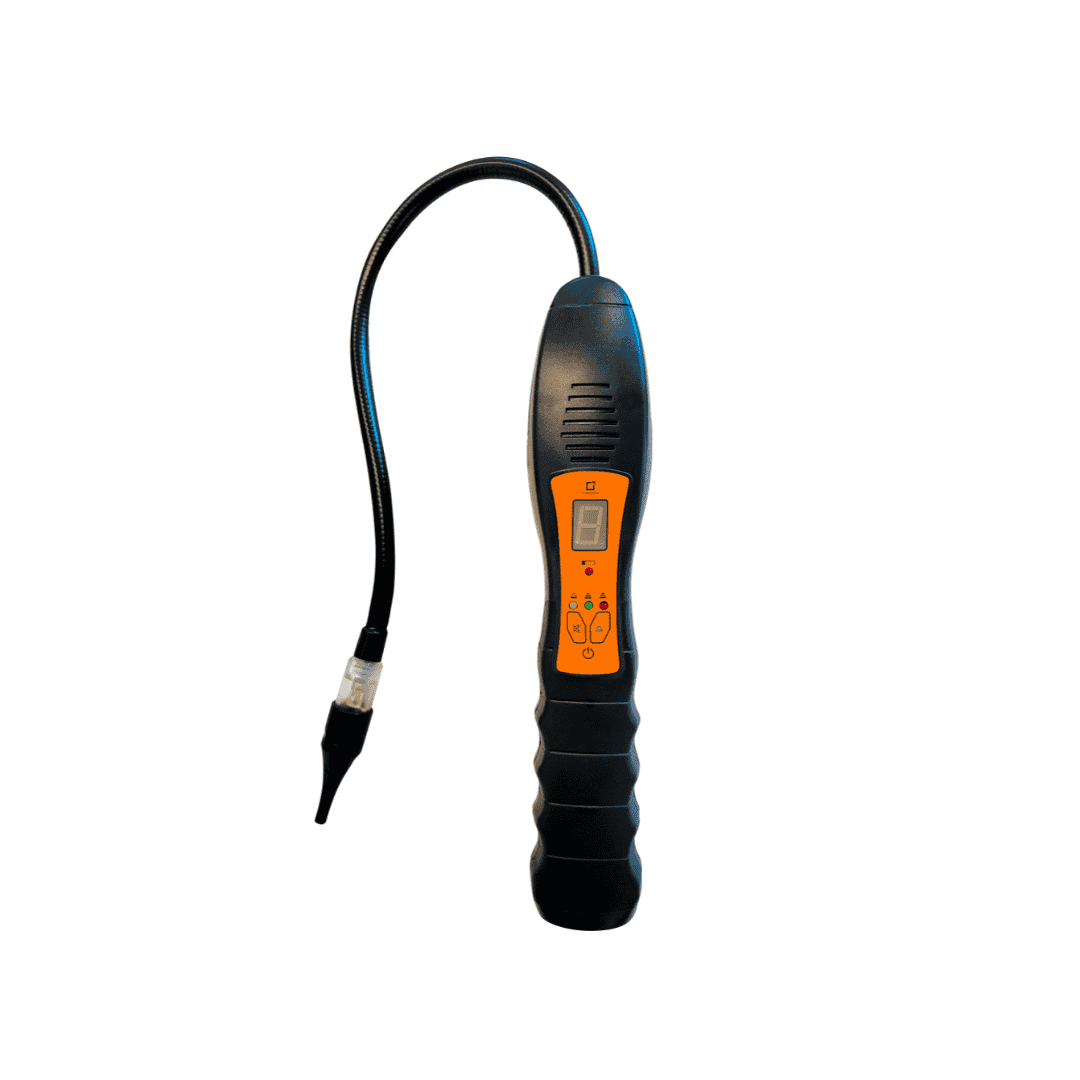

LINXON LXD3 handheld leak detector offers affordable leak detection solutions for HVAC/R & automotive service. It is specialised for forming gas (95% N2/ 5% H2) leak detection. The detector is equipped with field replaceable components, such as a long-lasting sensor, filter, and batteries, allowing for little to no downtime on the job.
FEATURES:
- Affordable leak detection you can rely on
- Simple operation allows for easy, repeatable gas analysis
- Low maintenance with field replaceable sensor, filter and batteries
| Feature | LXD3 |
| Part Number | 746-202-G1 |
| Audible Alarm | YES |
| Probe Tip Leak Indicator (LED) | YES |
| Numeric Display | YES |
| Carrying Case | YES |
| DETECTS | |
| Ammonia | YES |
| HCFCs, HFCs | YES |
| A2L Semi-Flammables | YES |
| Forming Gas (95/5) | YES |
INCLUDES:
1 x LXD3, carrying case, sensor, filter, batteries, 12 months warranty
SPECIFICATIONS:
| Technical Data Feature | LXD3 |
| Part Number | INF-746-202-G1 |
| Sensor Type | MOS sensor |
| Warranty | 1 year |
| Sensitivity to R134a (tested to EN14624) | 5 g/y |
| Sensitivity to R1234yf (tested to EN14624) | 1 g/y |
| Battery Type | x4 AA alkaline |
| Battery Life | Approximately 4-hours |
| Battery field replaceable | Yes |
| Sensor Filter | Yes |
| Sensor Life | 300 hours |
| Leak Indicators | 7-segment display, LED probe tip, Audible alarm |
| Background Zeroing | Auto |
| Sensitivity Levels | 3 levels |
| Warm Up Time | 20 seconds |
| Tested for use with A2L (semi-flammables like R32) | Yes |
| Weight (with batteries) | 0.97 lb. (440 g) |
| Probe Length | ~17 in. (43 cm) |
| Operating Temps | 24° to 125°F (-4° to 52°C) |
